ABS - With Commercial Chassis

CIRCUIT DESCRIPTION
This circuit is used to monitor the voltage level available to the EBTCM. If the voltage drops below 10.5 volts, full performance of the ABS/TCS cannot be guaranteed. During ABS/TCS operation, there are several current requirements that will cause battery voltage to drop. Because of this, voltage is monitored prior to ABS/TCS operation to indicate good charging system condition and also during ABS/TCS operation when voltage may drop significantly.

CONDITION FOR SETTING THE DTC
DTC C1236 can only be set if the vehicle's speed is greater than 8 km/h (5 mph). If both the battery and ignition voltages are less than 10.5 volts, a malfunction DTC will set.

ACTION TAKEN WHEN THE DTC SETS
A malfunction DTC is stored, ABS/TCS is disabled and the ABS and TRACTION CONTROL Indicator lamps are turned ON.

CONDITIONS FOR CLEARING THE DTC
Condition for DTC is no longer present and scan tool clear DTC function is used. Fifty start cycles have passed with no DTCs detected.

DIAGNOSTIC AIDS
It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction. An intermittent malfunction is most likely caused by a poor connection, rubbed through insulation, or a wire that is broken inside the insulation.

TEST DESCRIPTION

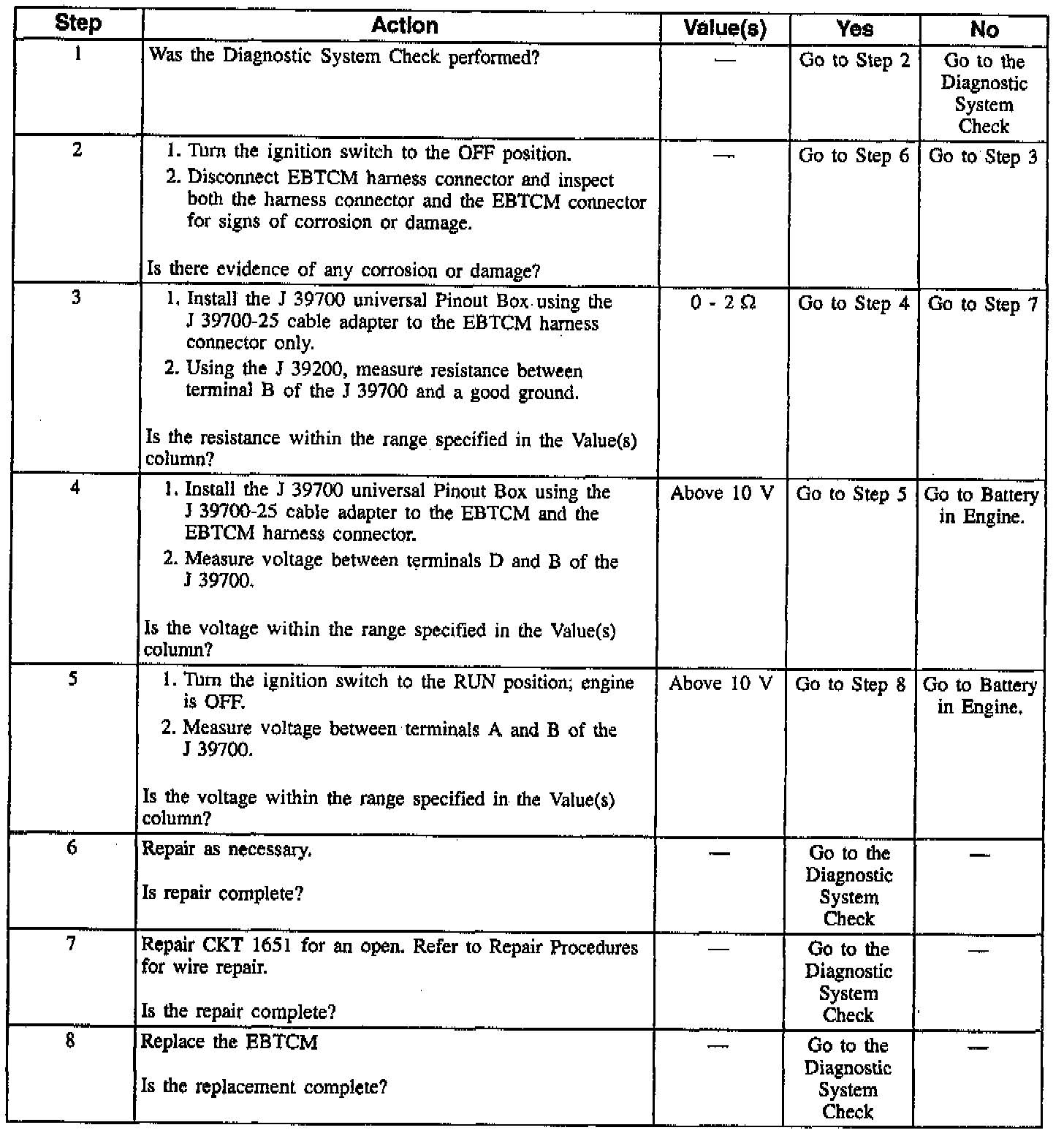

The numbers below refer to step numbers on the diagnostic table.
3. Checks for a good ground.
5. Checks for battery voltage.
