U1301 Class 2 Short to Battery

Circuit Description:
When PZM is "awake" it monitors the Class 2 serial data line for a short to battery.

DTC Will Set When:
The PZM determines that the Class 2 serial data line is shorted to battery for approximately 10 seconds or more.

Action Taken (By PZM):
The PZM will use default values for any information needed from the other modules on the Class 2 serial data line.

DTC Will Clear When:
The PZM determines that the Class 2 serial data line is no longer shorted to battery.

Troubleshooting Hints:
1. Because when DTC U1301 is current the modules on the Class 2 serial data line can not communicate with each other or diagnostic equipment, DTC U1301 should Always be a history code.

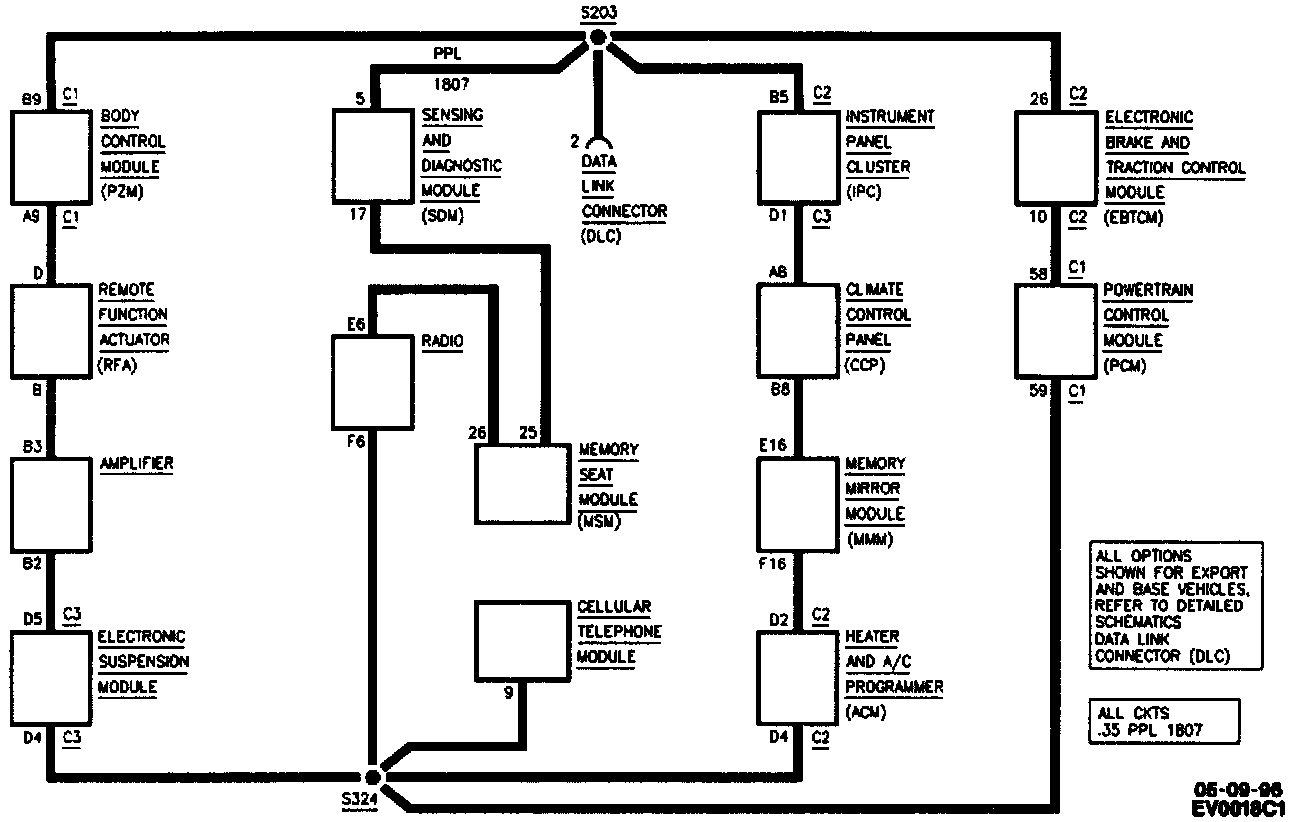

2. Check CKT 1807 (PPL) for a intermittent shorts to battery.
