Hands Free Microphone
Hands Free Microphone:
Hands Free Microphone:

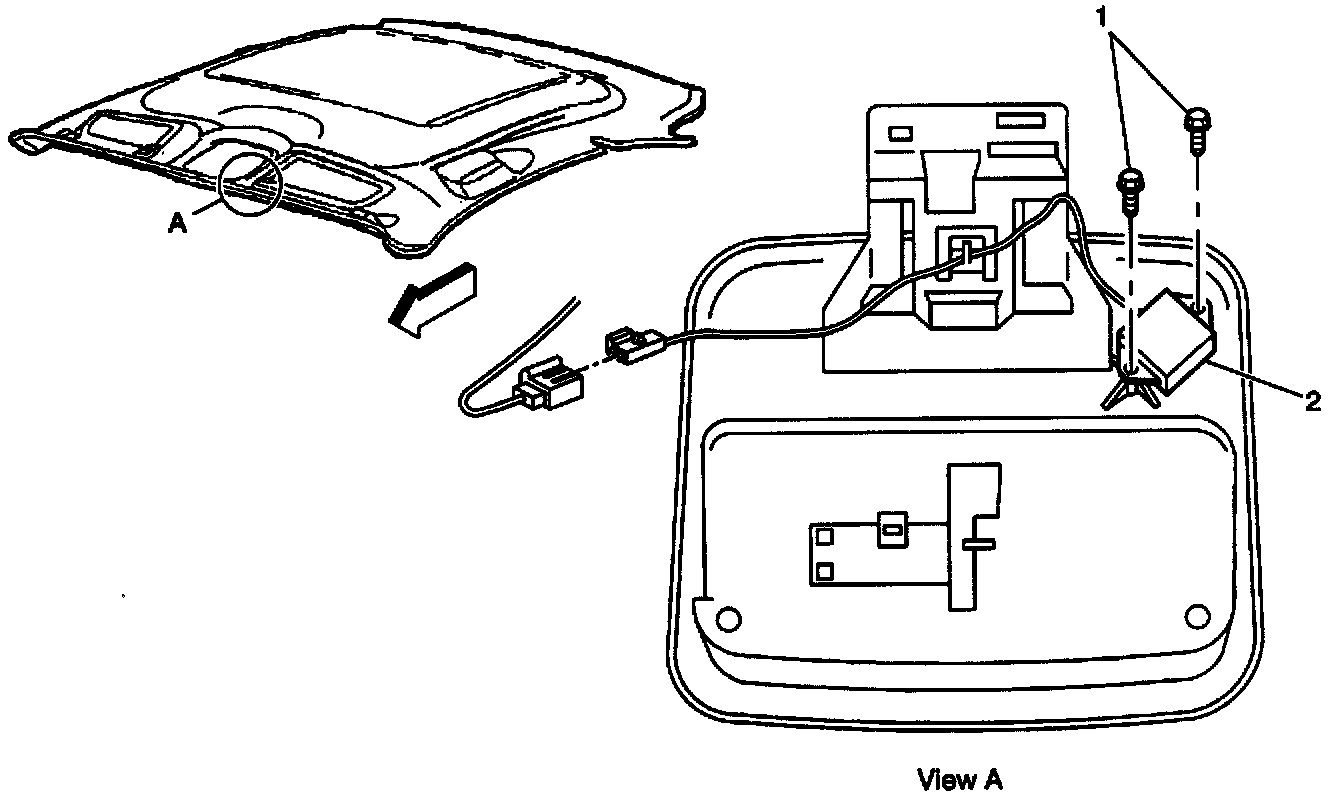

REMOVE OR DISCONNECT 1.
Remove overhead console.
2.
Microphone electrical connector.
3.
Foam from on top of microphone.
4.
Two screws.
5.
Microphone from overhead console.

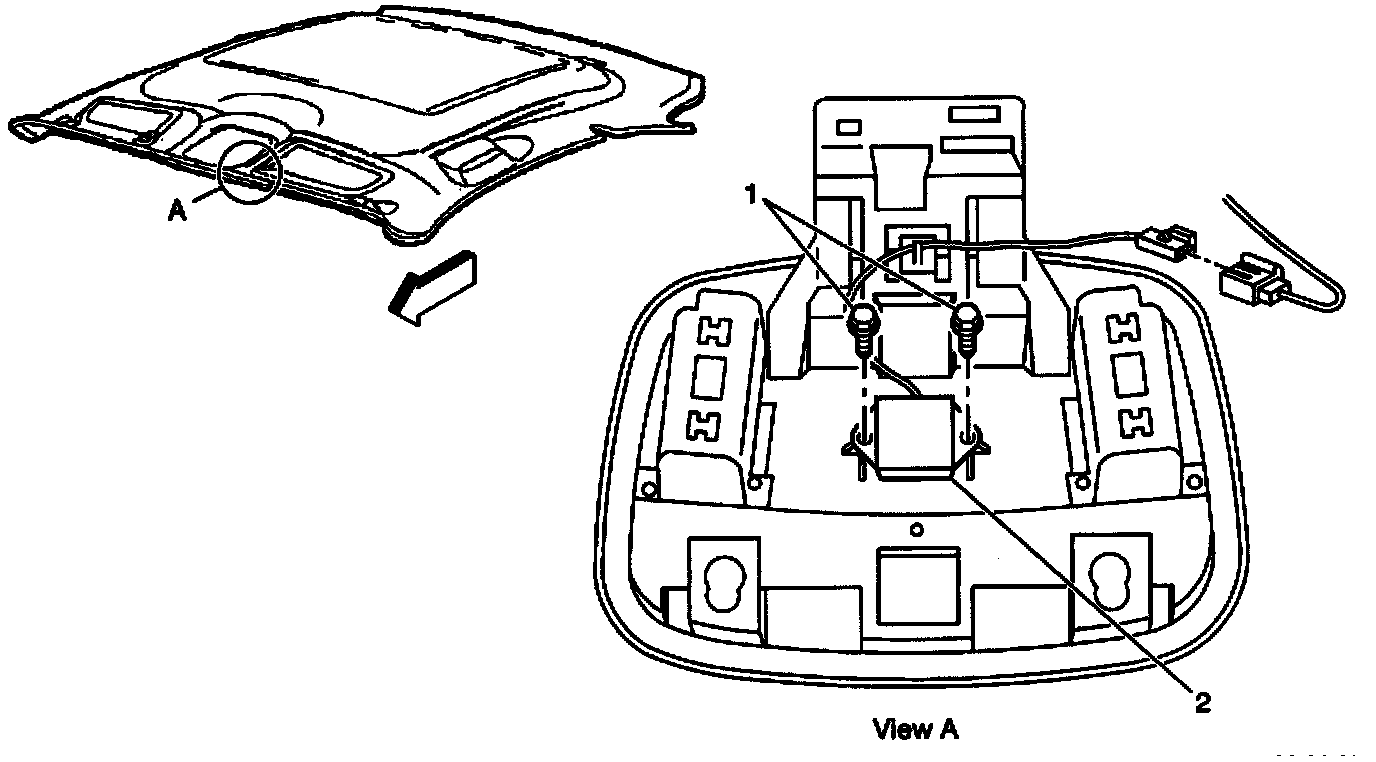

INSTALL OR CONNECT 1.
Microphone.
2.
Screws.
3.
Foam sound pad over microphone.
4.
Electrical connector.
5.
Overhead console.
