Transceiver/Bracket Assembly

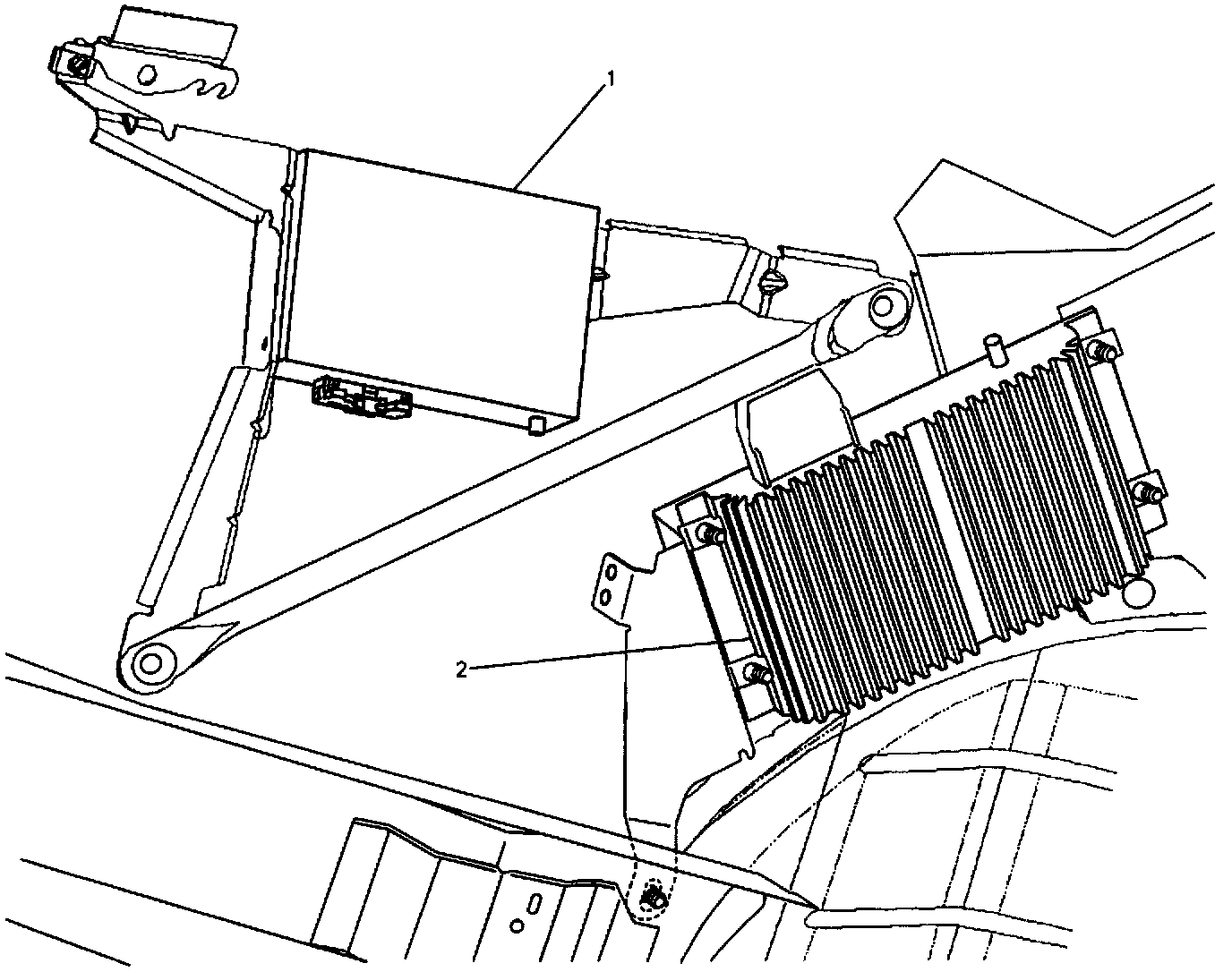

Transceiver/Bracket Assembly:

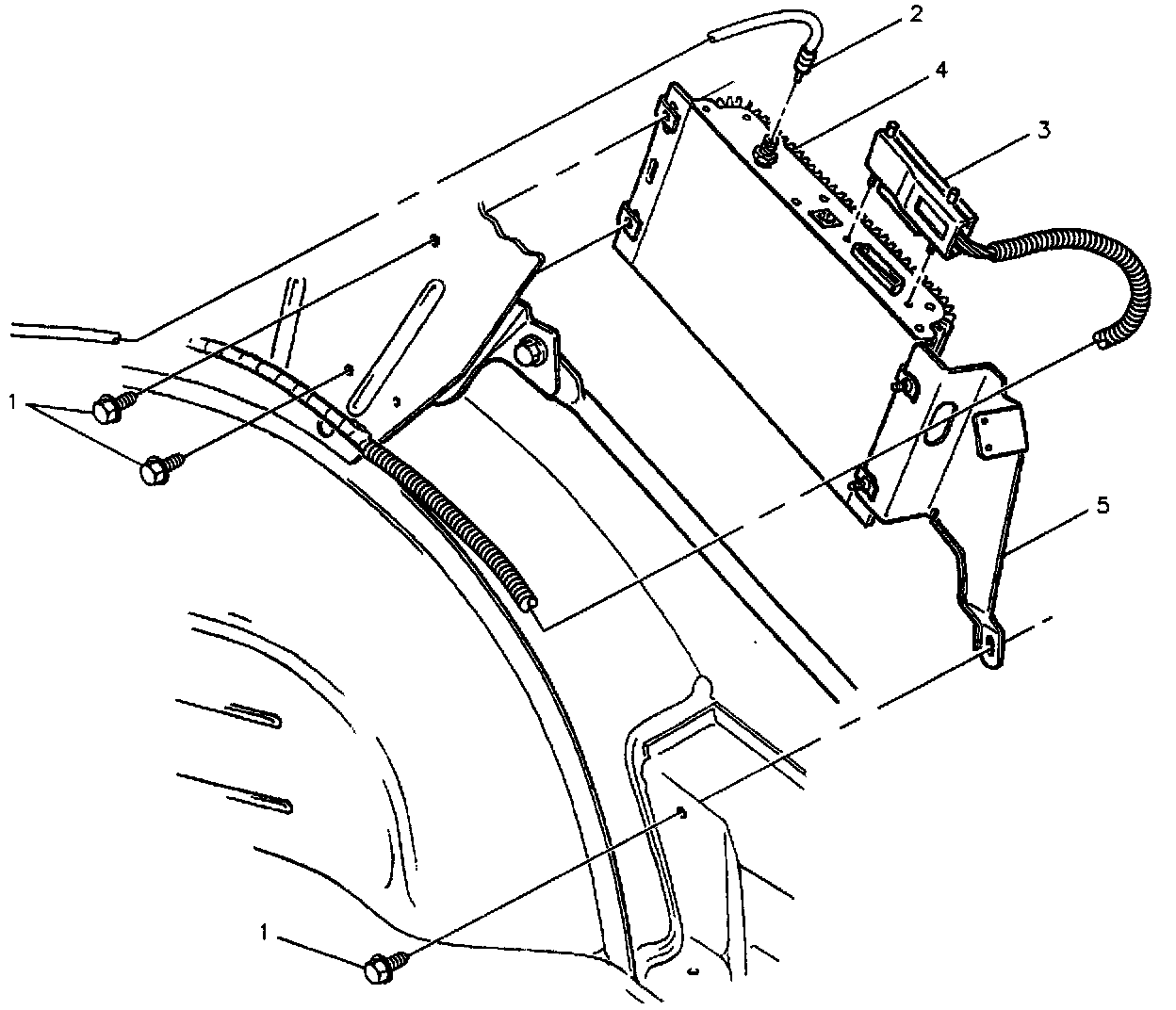

Transceiver/Bracket Assembly - With On-Star:




REMOVE OR DISCONNECT
1. Remove rear compartment trim.
2. Electrical connection and coax cable.
3. Three (3) mounting screws.
4. Screws from transceiver to mounting bracket.
5. J-Nuts from brackets if brackets are being replaced.

INSTALL OR CONNECT
1. Snap two (2) J-Nuts to upper bracket and two (2) J-Nuts to lower transceiver bracket. (Use procedure if brackets are being replaced or new installation.)
2. Mount lower bracket to transceiver with two (2) screws on each bracket.
3. Align transceiver to right inner wheel housing mounting points.
4. Install one (1) screw at each mounting point to secure.
5. Electrical connection and coax cable.
6. Rear compartment trim.
