Power Antenna Assembly

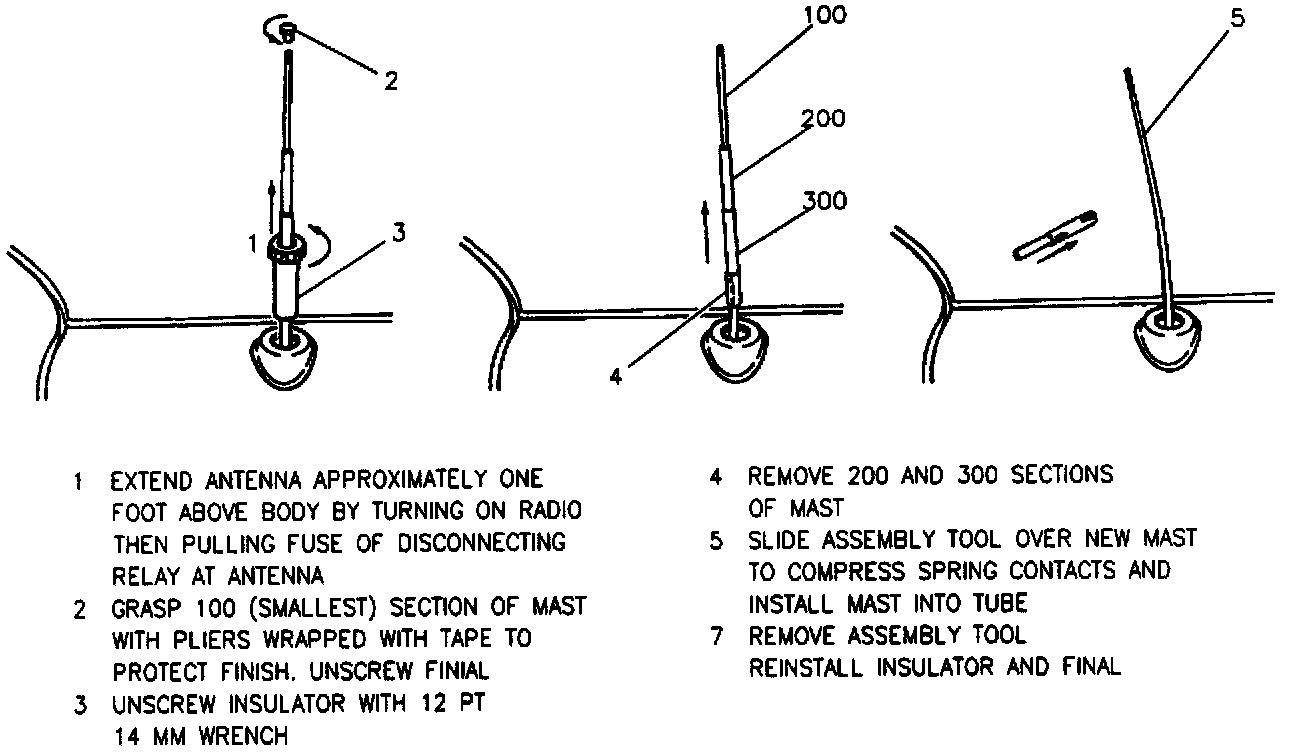

Antenna Mast Sections:




REMOVE OR DISCONNECT
1. Rear compartment trim.
2. Coax (lead-in ) cable from antenna.
3. Electrical connector from antenna relay.
4. Ground strap from body.
5. Nut from mounting bracket to weld flange.
6. Antenna assembly.

INSTALL OR CONNECT
1. Position top of antenna assembly.
2. Nut through mounting bracket to wheel well.
3. Electrical connector to antenna relay.
4. Ground strap.
5. Antenna lead-in from radio receiver.
6. Rear compartment trim.
