Radio Control Head With Console Shift

Radio Control/HVAC With Console:




Radio/HVAC Brackets With Full Console:

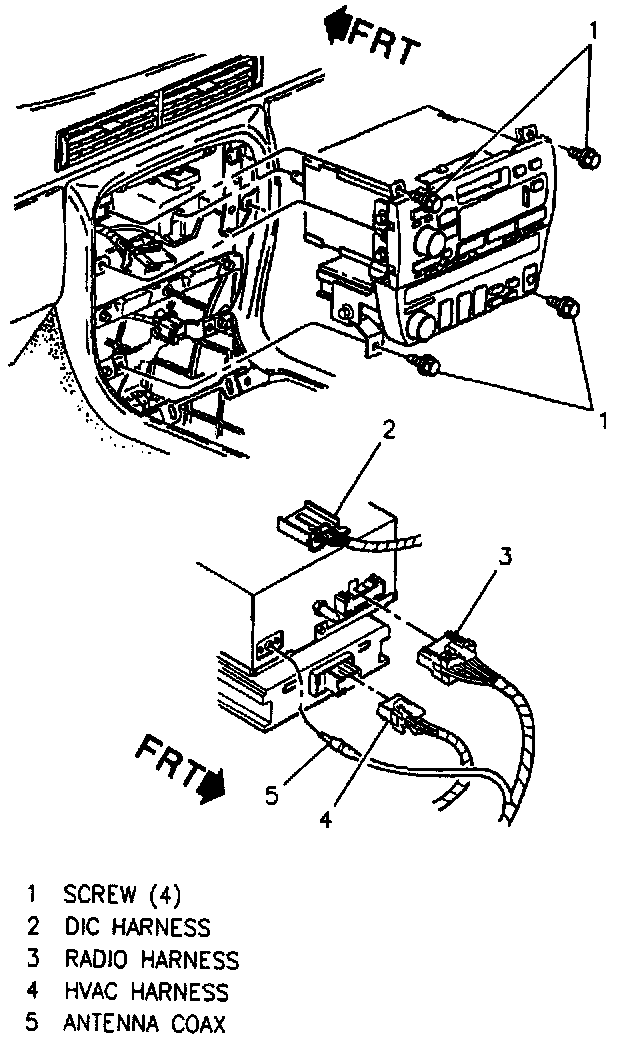

REMOVE OR DISCONNECT
1. Shifter trim plate.
2. Ashtray assembly.
3. DIS.
4. Screws from radio/HVAC assembly.
5. Electrical connectors and antenna coax cable.

INSTALL OR CONNECT
1. Harness connectors.
2. Radio/HVAC assembly.
3. Screws.
4. Electrical connector to DIS.
5. DIS into console opening.
6. Ashtray.
7. Shifter trim plate.

ADDITIONAL STEPS WHEN USING AN EXCHANGE RADIO:
^ Remove two brackets from sides of radio control head.
^ Remove one 16mm plastic locating pin and clip stud from rear of control head.
