Front Door Speaker Amplifier

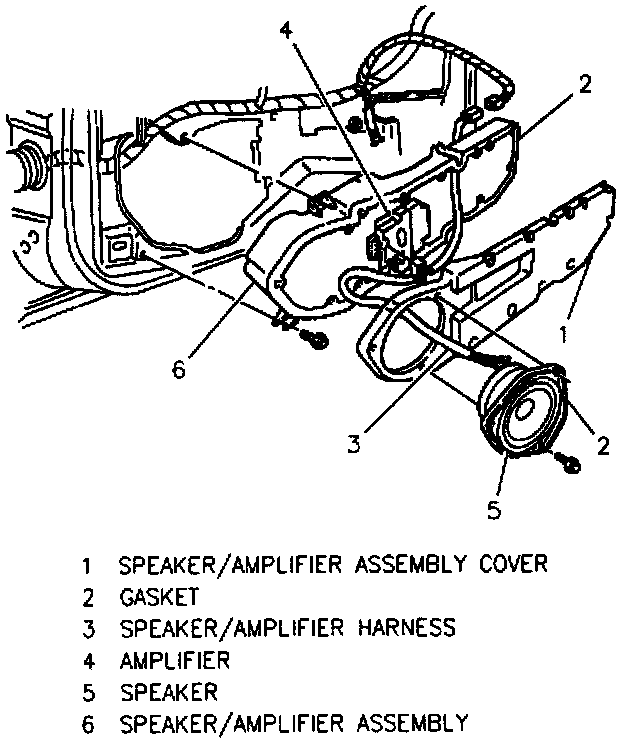

Front Speaker - With Bose (R) Radio:




A 4 inch speaker with amplifier is located in an enclosure. Speakers may be accessed by removing speaker grille to determine if operating.

REMOVE OR DISCONNECT
1. Door trim panel.
2. Speaker electrical connector.
3. Four screws to release speaker unit (enclosure contains amplifier and speaker).
4. Amplifier cover and gasket, amplifier, harness connector, speaker and gasket.

INSTALL OR CONNECT
1. Amplifier cover and gasket, amplifier, harness connector, speaker and gasket. Proper repositioning of gaskets is necessary for proper performance. Route wire in notches in housing to prevent damage.
2. Four screws to reattach enclosure to door.
3. Speaker electrical connector.
4. Door trim panel.
