Steering Column Opening Filler Trim




STEERING COLUMN OPENING FILLER TRIM

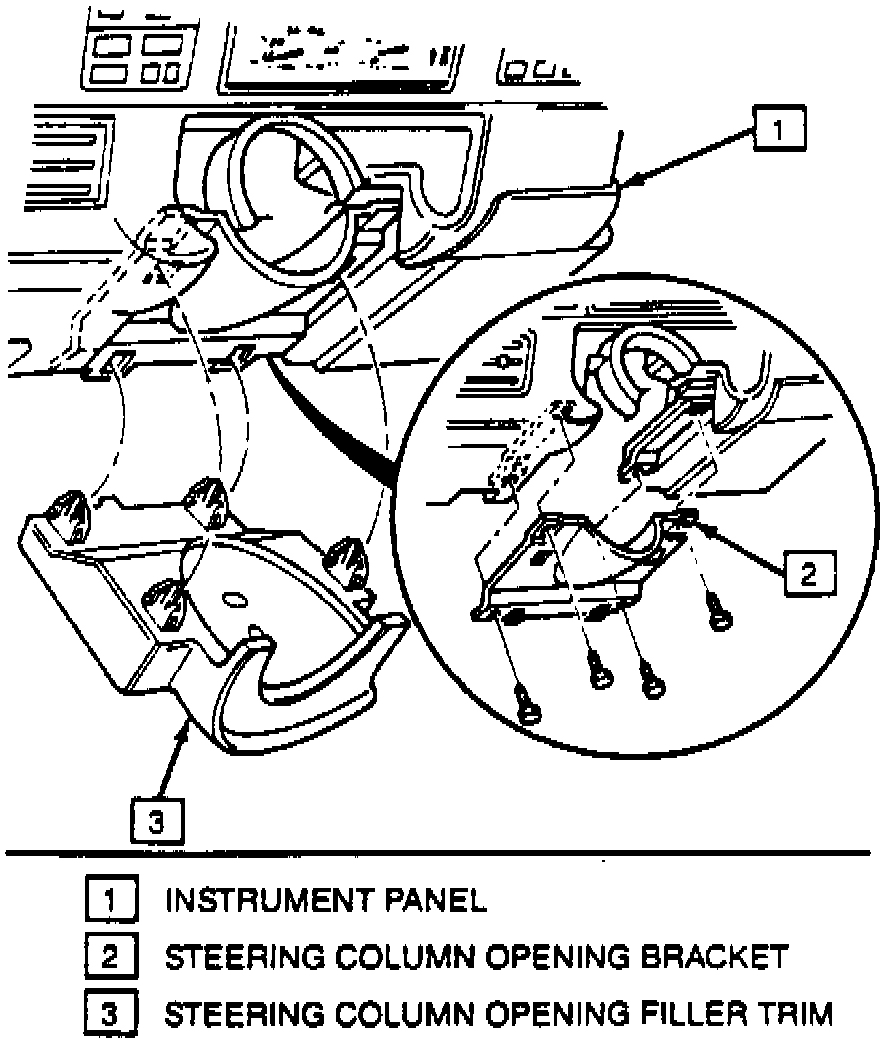

Fig. 24 Steering Column Opening Bracket & Filler Trim Removal:






REMOVE OR DISCONNECT
1. Left sound insulator from vehicle.
2. Filler trim by grasping at front snd rear edges snd pulling downward.

IMPORTANT: The filler trim should be replaced, not repaired, if there is any visible dsmage.

INSTALL OR CONNECT
1. Filler trim by lining up four retaining clips with slots in opening bracket and pushing into place.
2. Lest sound insulator.
