Intermediate

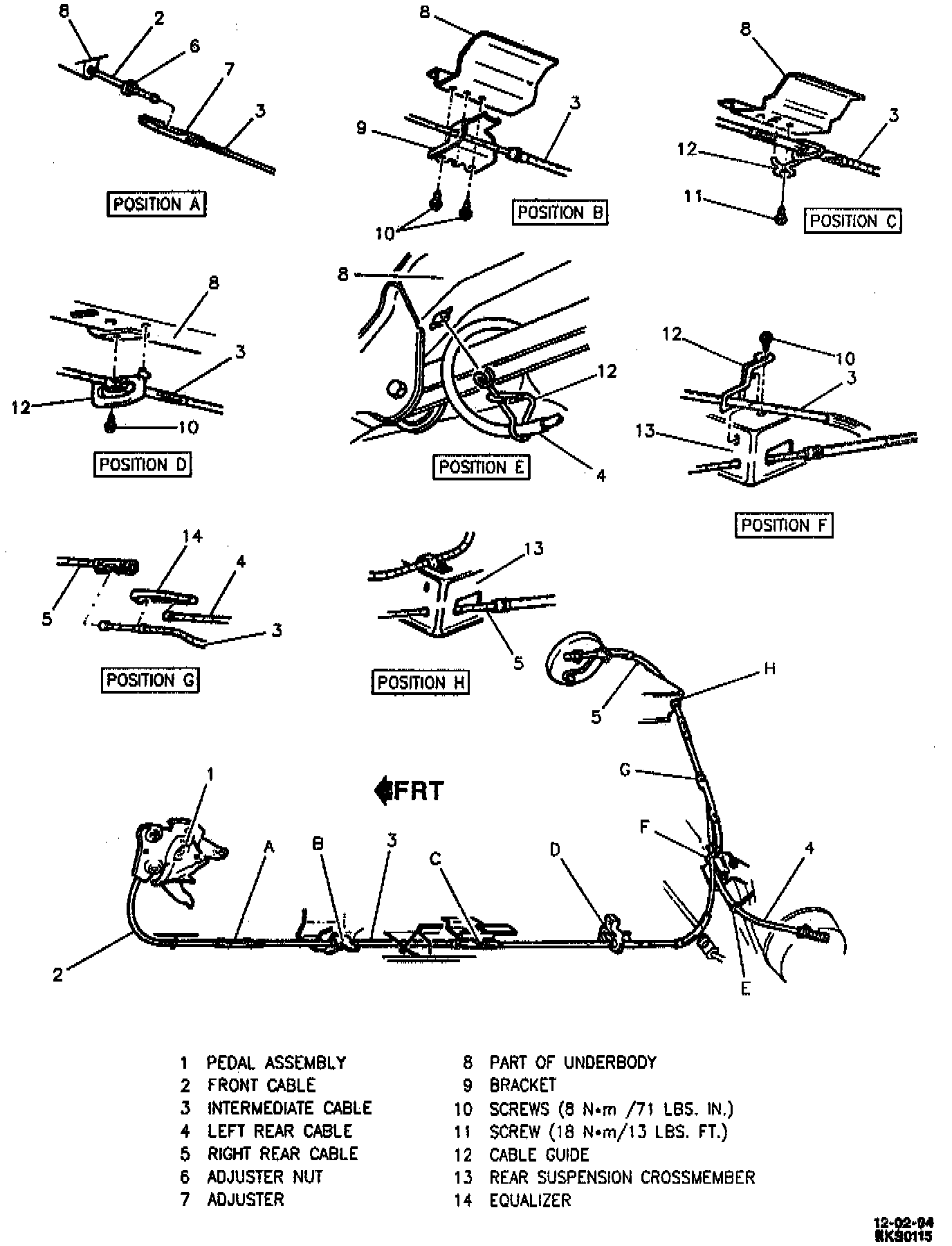

Parking Brake Cable And Retainers:

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Disconnect front cable from intermediate cable at adjuster.
3. Remove adjuster from intermediate cable.
4. Disconnect left rear, right rear and intermediate cables at equalizer.
5. Remove intermediate cable from vehicle.

INSTALL OR CONNECT

Parking Brake Cable And Retainers:

1. Position intermediate cable through retainers.
2. Connect intermediate, left rear and right rear cables at equalizer.
3. Install adjuster on intermediate cable forward end.
4. Connect intermediate cable to front cable at adjuster.
5. Adjust parking brake cable.
