Brakes and Traction Control: Tools and Equipment

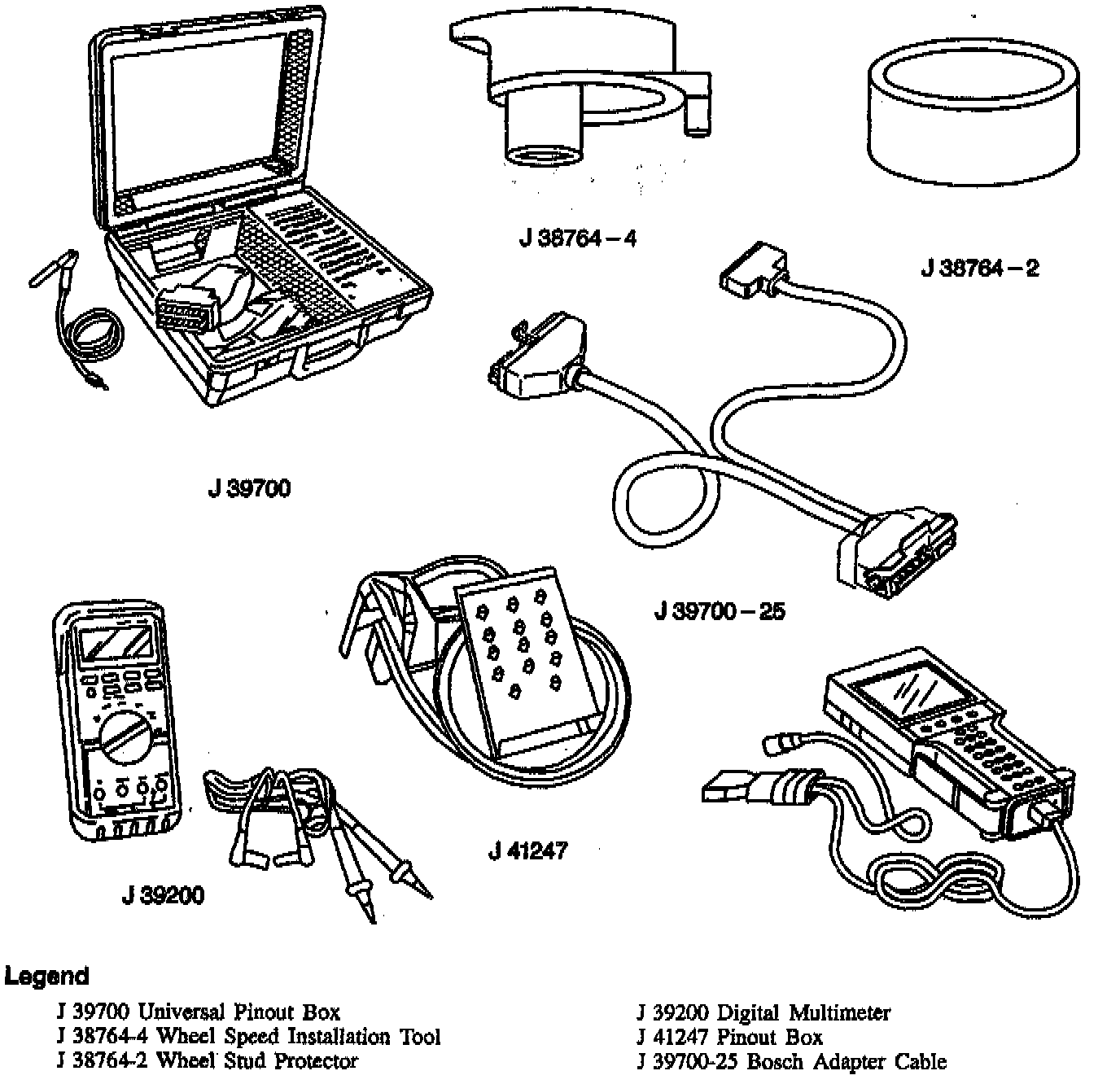

Special Tools:






J 39700
The J 39700 Universal Pinout Box must be used with the J 39700-25 Bosch Adapter Cable. Always connect the J 39?00 assembly to the vehicle harness and/or EBTCM as directed by the diagnostic table. Ensure the ignition is OFF when connecting or disconnecting the J 39700.

J 41247
The J 41247 is a Pinout box that is connected to the BPMV with the EBTCM removed. It is used with the J 39200 Digital Multimeter to measure resistance values of the solenoid valves located in the BPMV.
