Instrument Panel Cluster Replacement

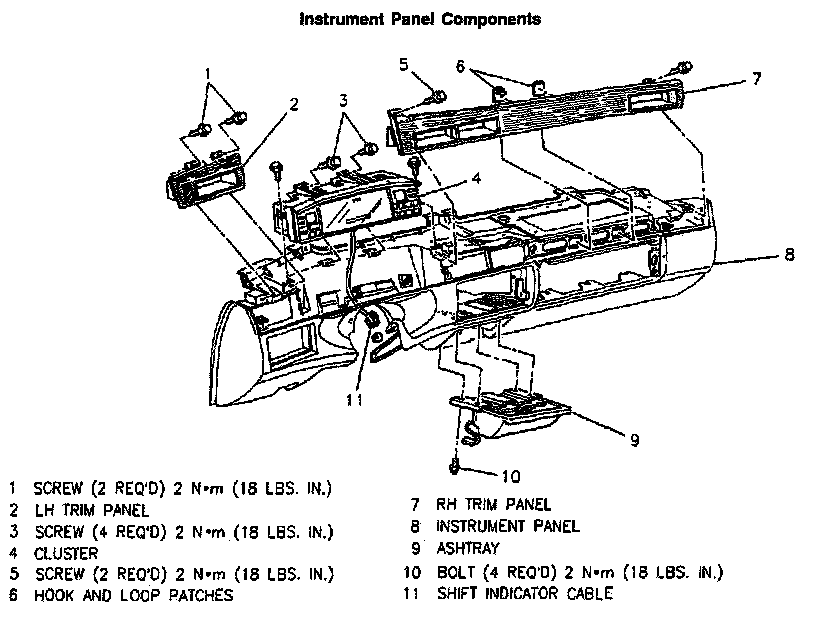

INSTRUMENT PANEL CLUSTER






REMOVE OR DISCONNECT
1. Pull fuses A5-IPC (Ign) and B5-IPC (Batt) from rear Compartment fuse panel and fuse A3-IGN1 from engine compartment fuse panel.
2. Upper trim panel. Refer to Instrument Panel Upper Trim Panel.
3. Two electrical connectors on top of instrument cluster.
4. Four screws retaining cluster to I/P.
5. Steering column opening bracket. Refer to Steering Column Opening Bracket.
6. Cluster.

INSTALL OR CONNECT
1. Position cluster to I/P.
2. Four screws retaining cluster to I/P.
3. Two electrical connectors to top of cluster.
4. Upper trim panel.
5. Steering column opening bracket.
6. Fuses to fuse panels.
