Standard

Exterior Lamps:





Exterior Lamps:

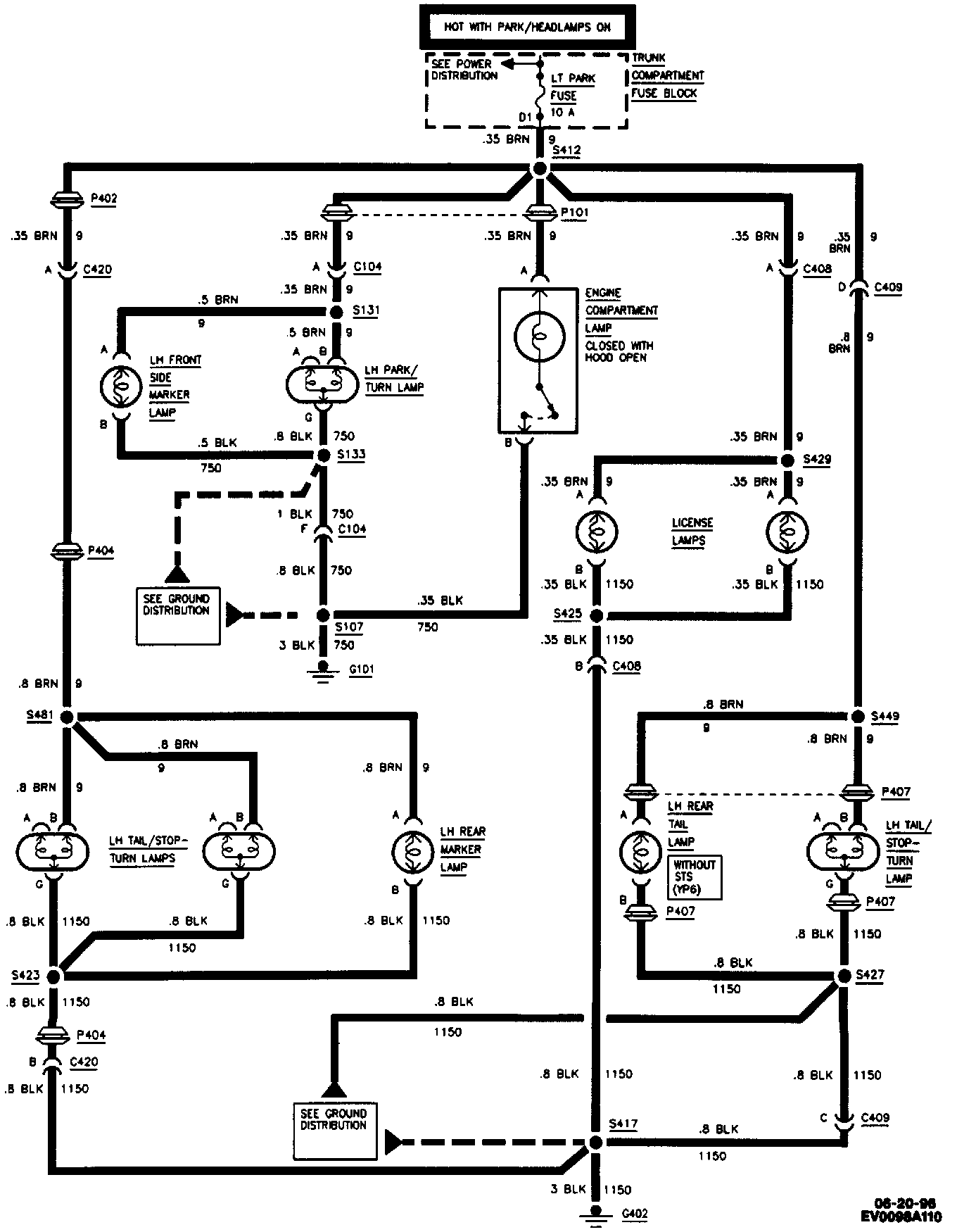

Exterior Lamps: Park Lamps:

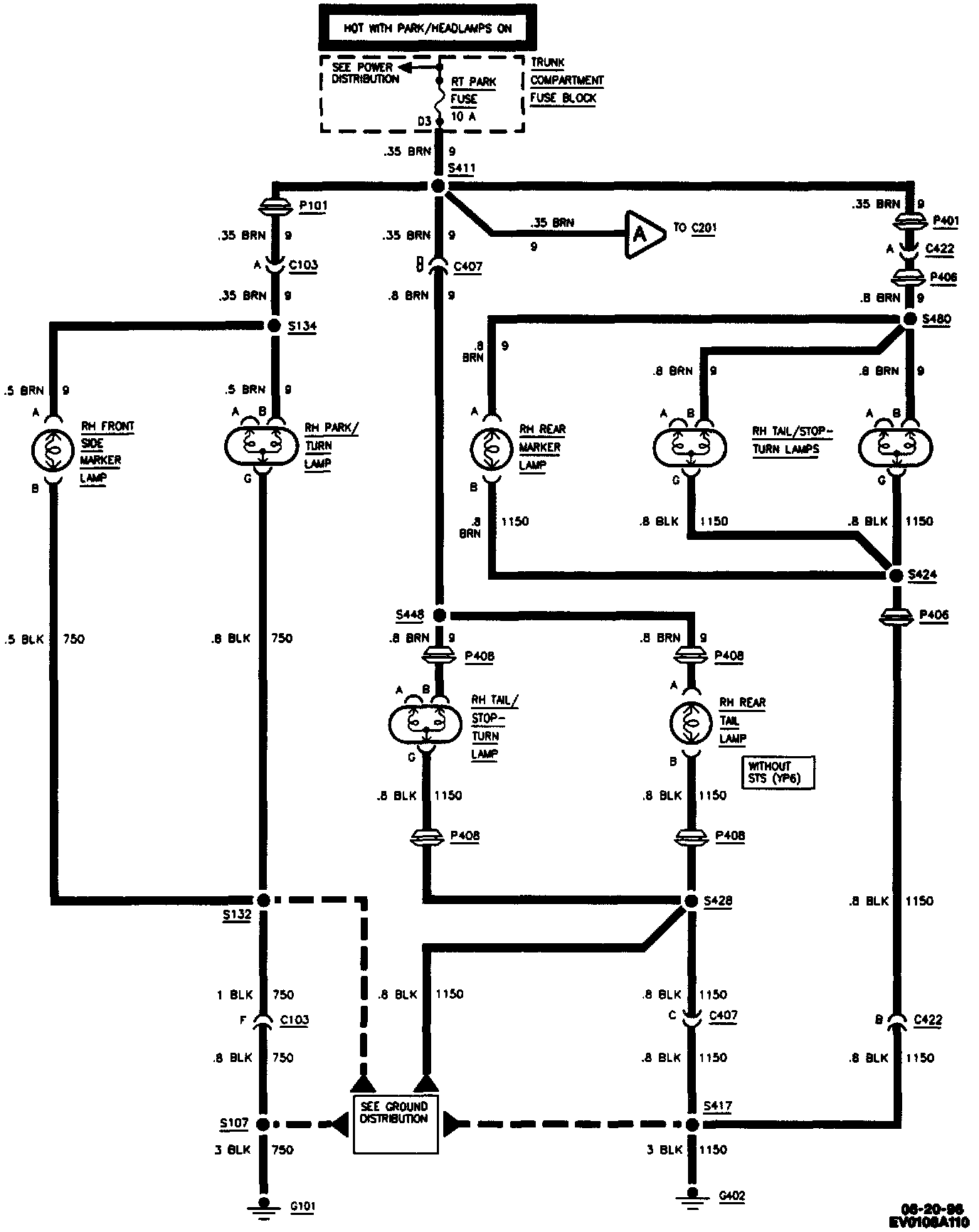

Exterior Lamps: Park Lamps (cont):





Exterior Lamps: Turn/Hazard Sw, T/S Flasher, Hazard Flasher:

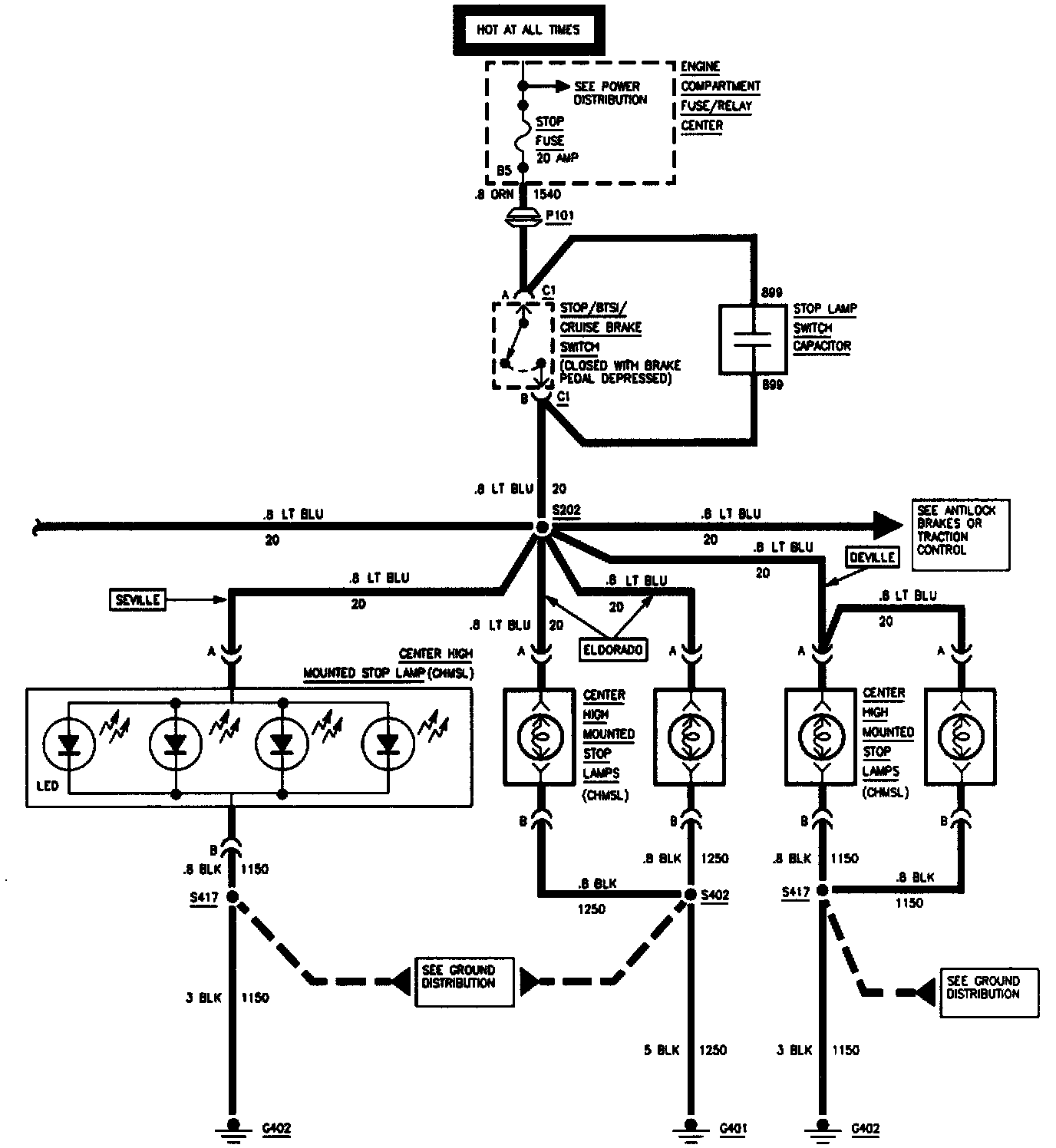

Exterior Lamps: Stop/BTSI Sw, Center High Mounted Stop Lamps:

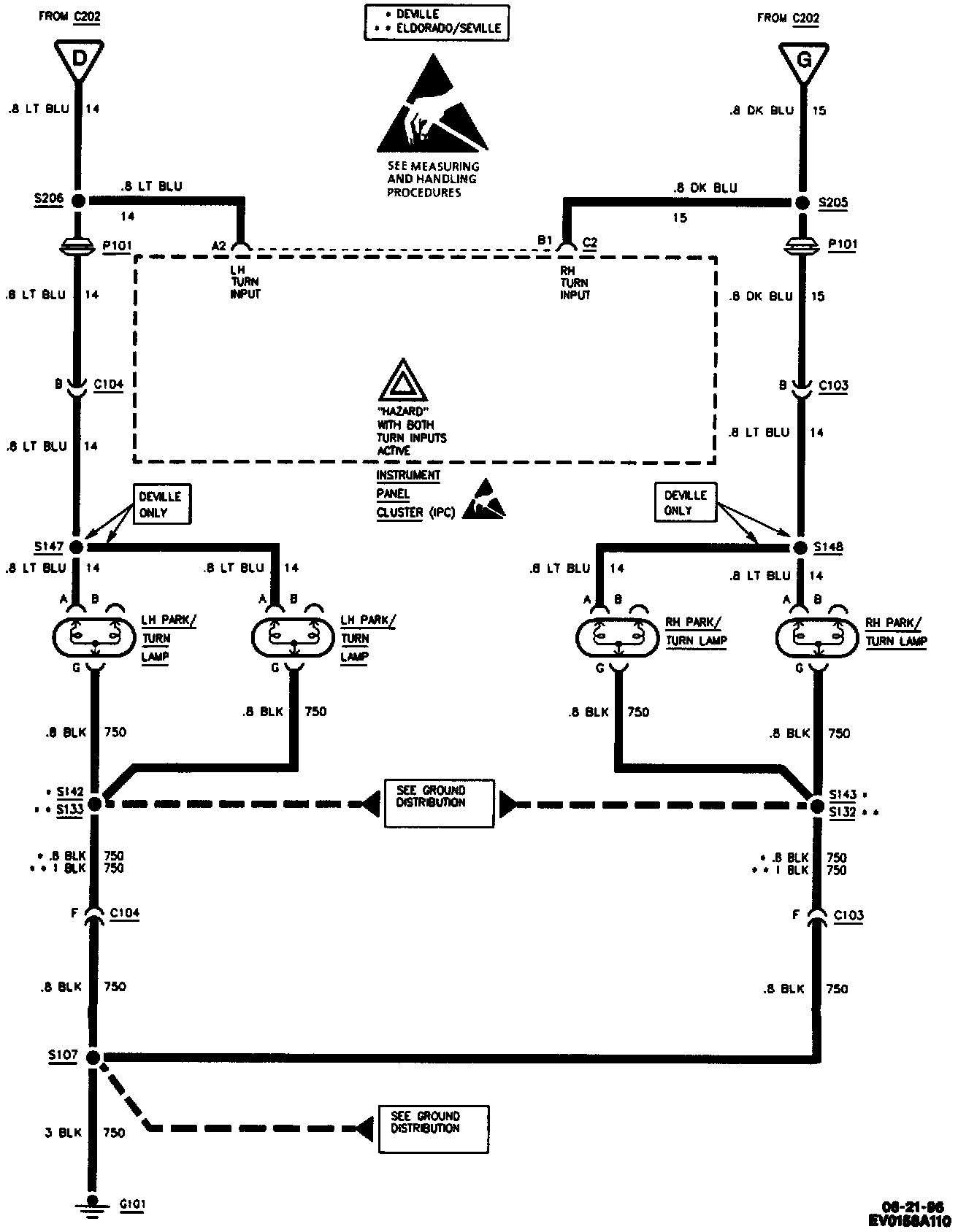

Exterior Lamps: Front Turn Lamps:

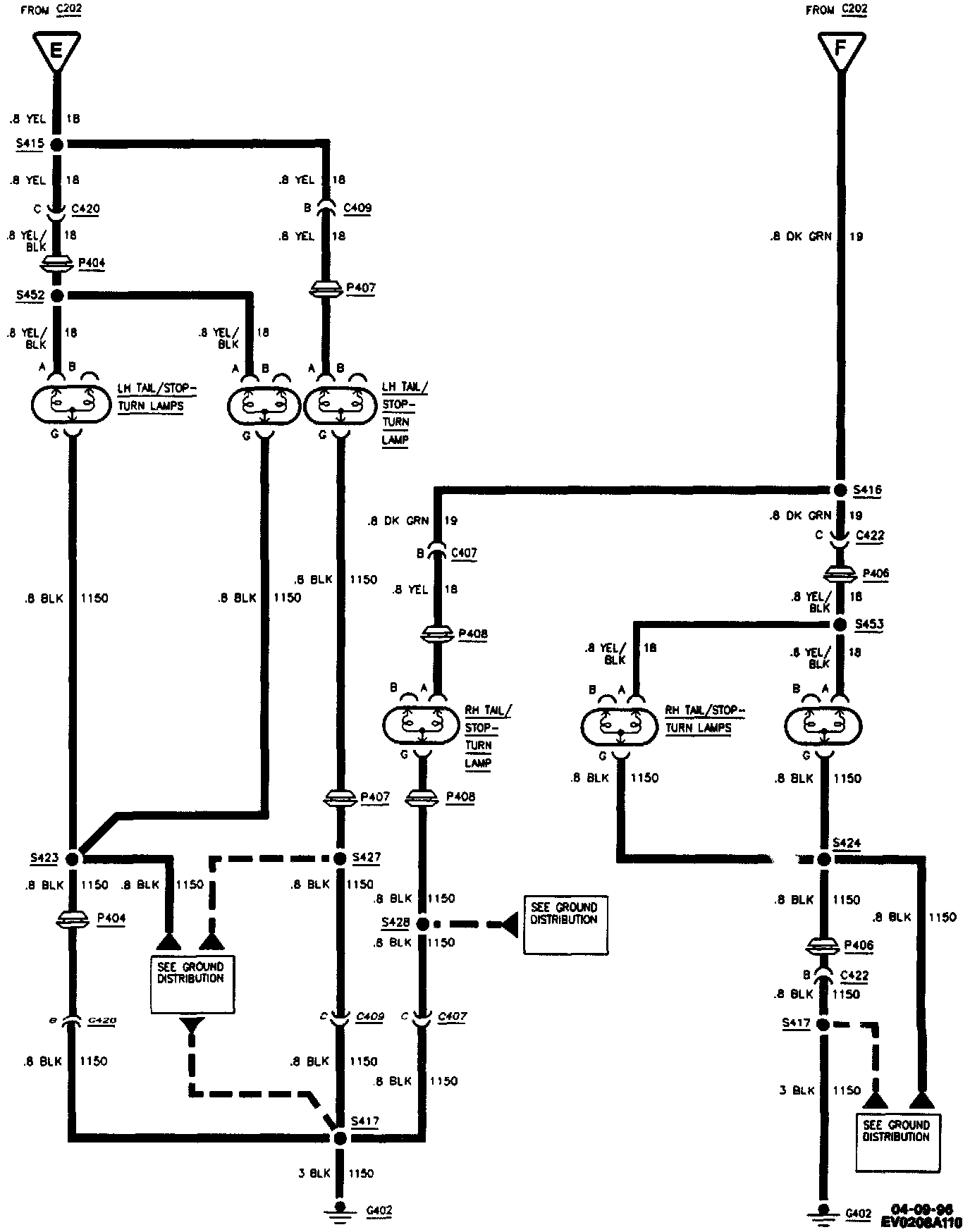

Exterior Lamps: Rear Turn Lamps:





Exterior Lamps: Cornering Lamps:
