Ignition Coil: Description and Operation
Ignition Module And Coils Replacement:

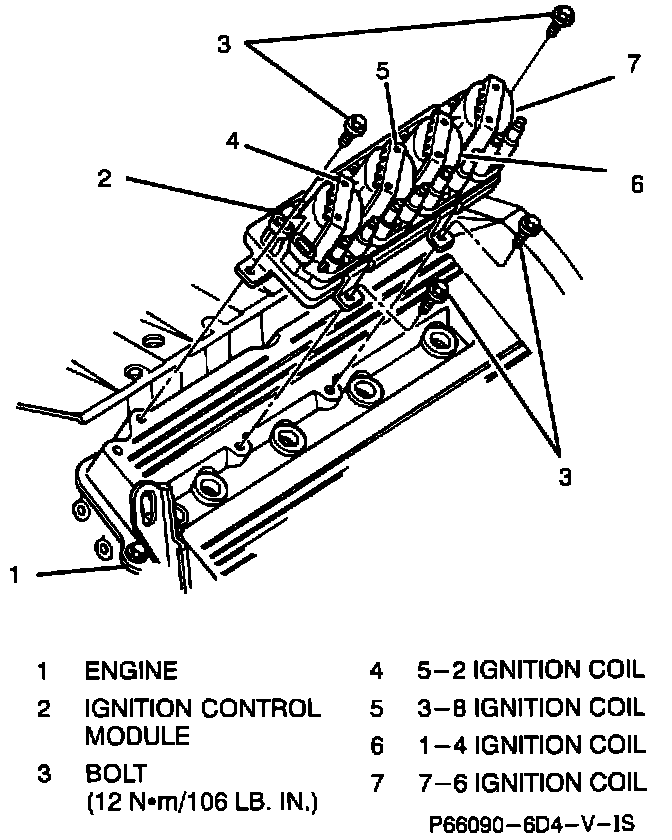

IGNITION COILS Four separate coils are mounted to the module assembly (see image). Each coil provides the spark for two
spark plugs simultaneously (wasted spark ignition). Each coil can be replaced separately.
