Control Module Replacement

REMOVE OR DISCONNECT
1. Trunk front trim panel.
2. Access rear electronics compartment.

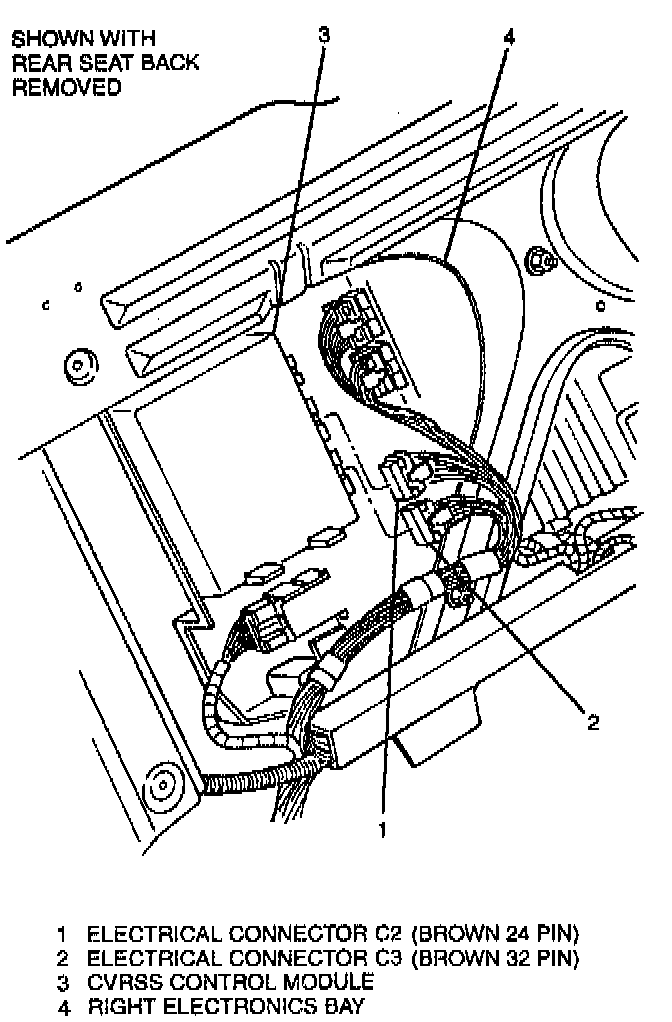

3. Electrical connectors (1 and 2) from Continuously Variable Road Sensing Suspension (CVRSS) control module (3).
4. CVRSS control module (3) from right electronics bay (4).

INSTALL OR CONNECT
1. CVRSS control module (3) in right electronics bay (4).
2. Electrical connectors (1 and 2) to CVRSS control module (3).
3. Rear electronics compartment.
4. Trunk front trim panel.

Important: After replacing CVRSS control module, the following steps must be performed:
1. CVRSS Control Module Calibration.
2. Steering Auto Center Adjustment.
3. Electronic Leveling Control (ELC) Trim Height Adjustment.
