Control Valve Assembly










REMOVE OR DISCONNECT

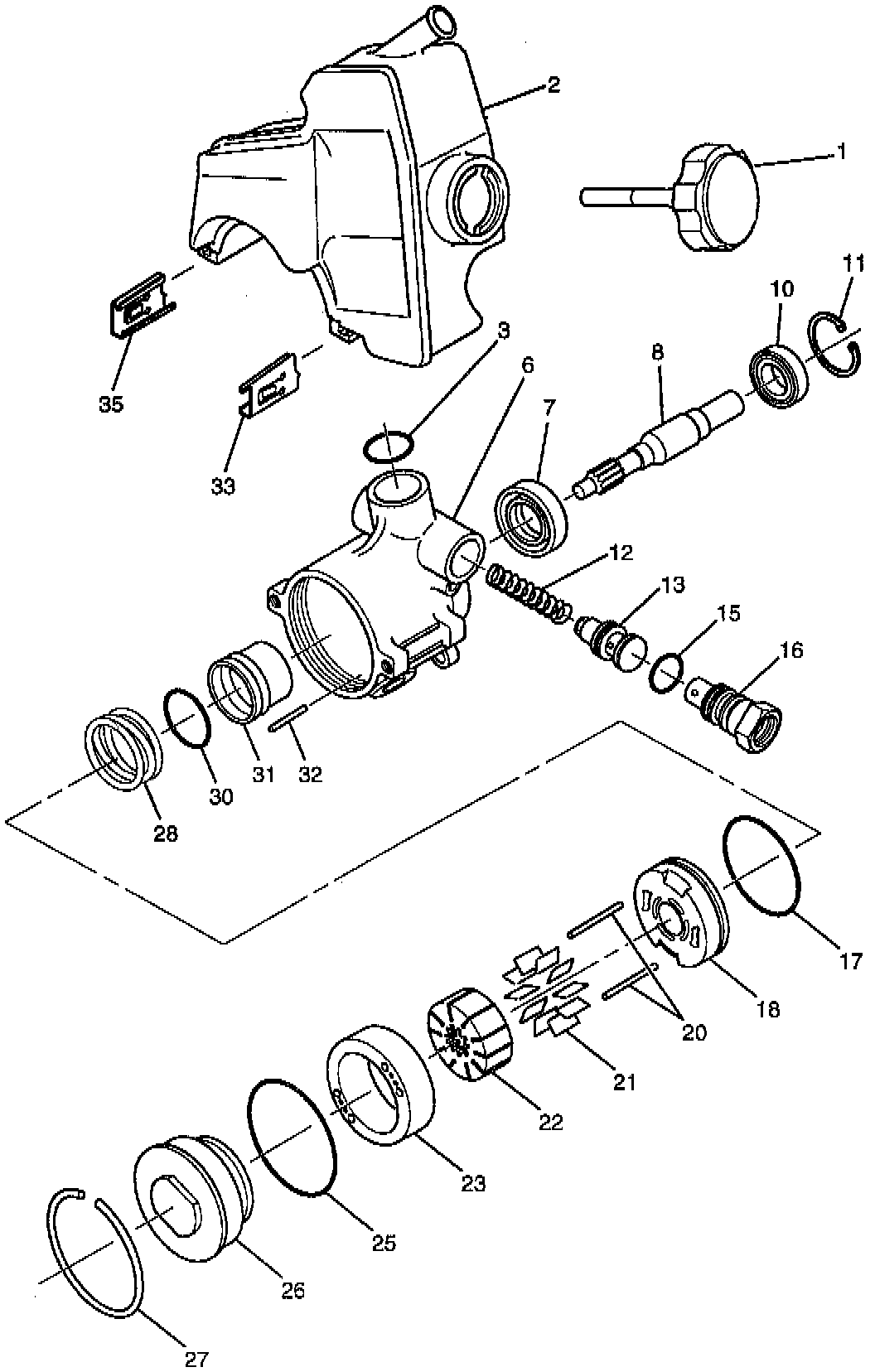

1. Pump assembly from vehicle if necessary for access.
2. O-ring union fitting (16) from housing (6) and discard O-ring seal (15) from fitting (16).
3. Control valve assembly (13) from housing (6).
4. Flow control spring (12) from housing, (6).

INSTALL OR CONNECT
1. Flow control spring (12) to housing (6).
2. Control valve assembly (13) to housing (6).
3. New O-ring seal (IS) onto union fitting (16) lubricated with power steering fluid, and fitting (16) into pump housing (6).
^ Tighten union fitting (16) to 75.0 Nm (55 lb. ft.).
4. Pump assembly to vehicle.
