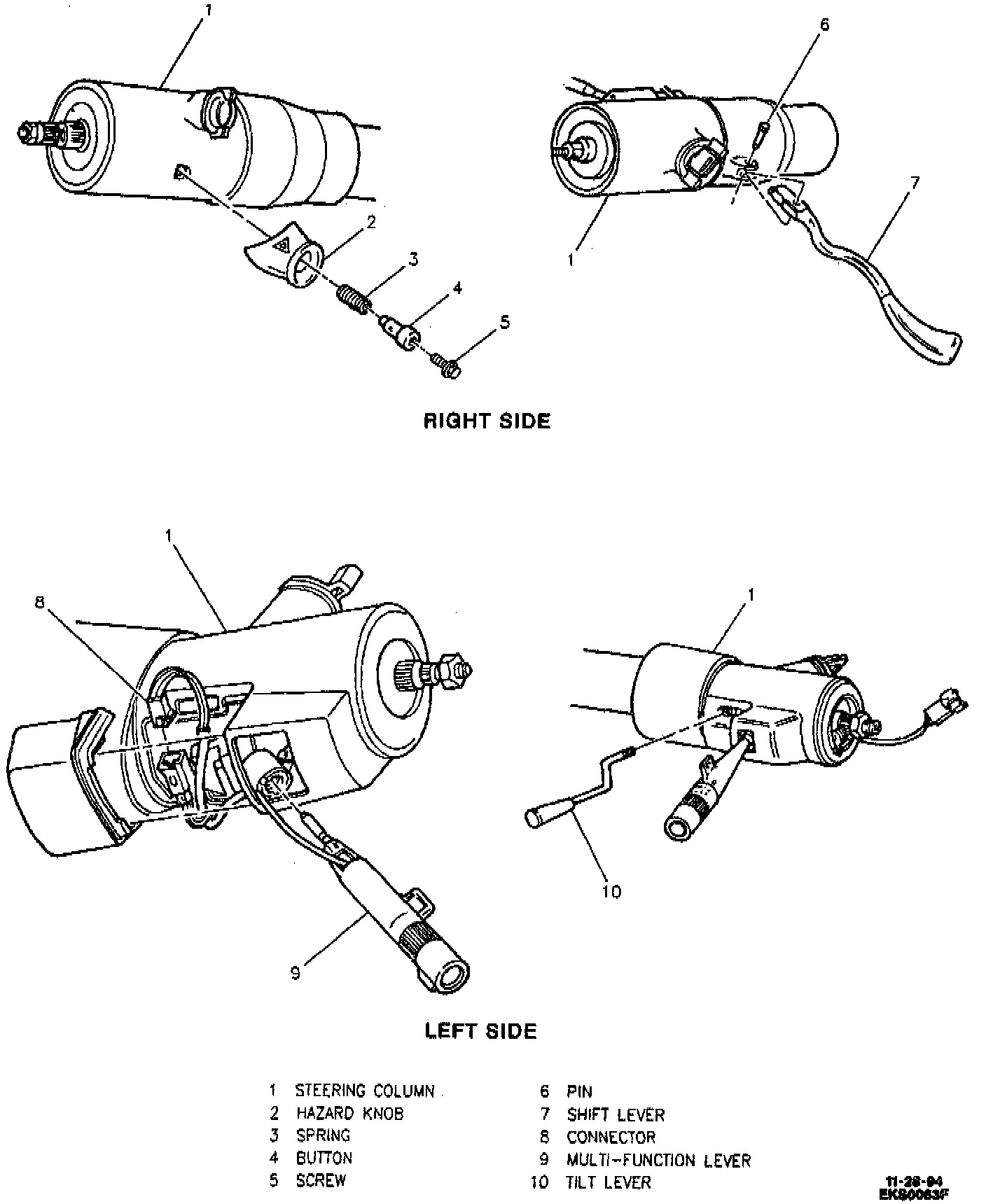

Multifunction Turn Signal Lever







NOTICE: When removing the lever, make sure care is taken not to extend the lever wire beyond its normal length.

REMOVE OR DISCONNECT
1. Slide connector cover toward front of car and unplug connector.
2. Push lever straight in, rotate to the right (clockwise) 1/4 turn and pull out of switch.

INSTALL OR CONNECT
1. Route electrical harness and connect connector.
2. Lever into switch. Push straight in on the lever and rotate to the left (counterclockwise) 1/4 turn to lock in position.
