Front Control Arm Bushing







^ Tools Required:
- J 35561-1 Driver
- J 35561-2 Receiver
- J 35561-3 Installing Cup

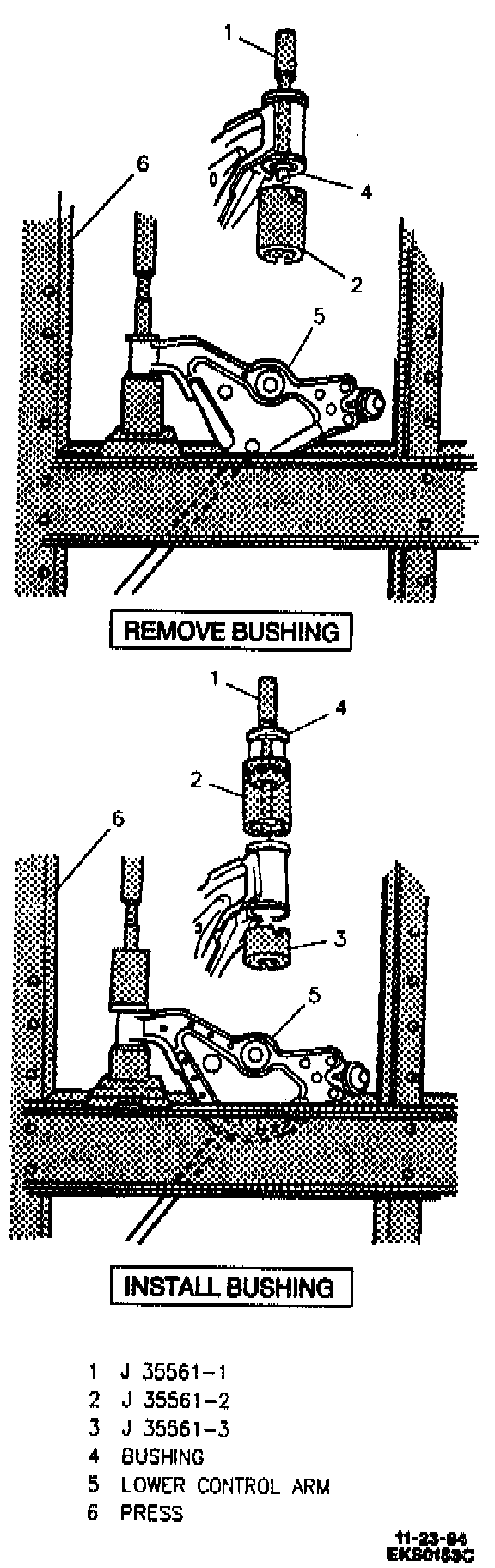

REMOVE OR DISCONNECT
1. Remove lower control arm.
2. Using J 35561-1, J 35561-2, and J 35561-3 press out bushing.

INSTALL OR CONNECT
1. Lubricate new bushing with rubber lube.
2. Install tools and press in new bushing.
3. Install lower control arm.
