With CVRSS

REMOVE OR DISCONNECT
1. Raise vehicle and suitably support.
2. Exhaust system from rear hangers and suitably support.

Important: Before disconnecting air hose and air tube from air compressor, clean the components and the surrounding area to prevent dirt and other foreign material from entering Electronic Level Control (ELC) system.

3. Air tube (1) from air dryer (2).
4. Air tube (1) and two clips (6) from air compressor bracket (4).
5. Intake air filter and air hose from vehicle and air compressor.
6. Harness connector C406 (K) from air compressor connector (L).
7. Three bolts (9) and air compressor assembly (M) with bracket (4) from vehicle.
8. Three bolts (10) and air bracket (4).
9. Air dryer from air compressor.

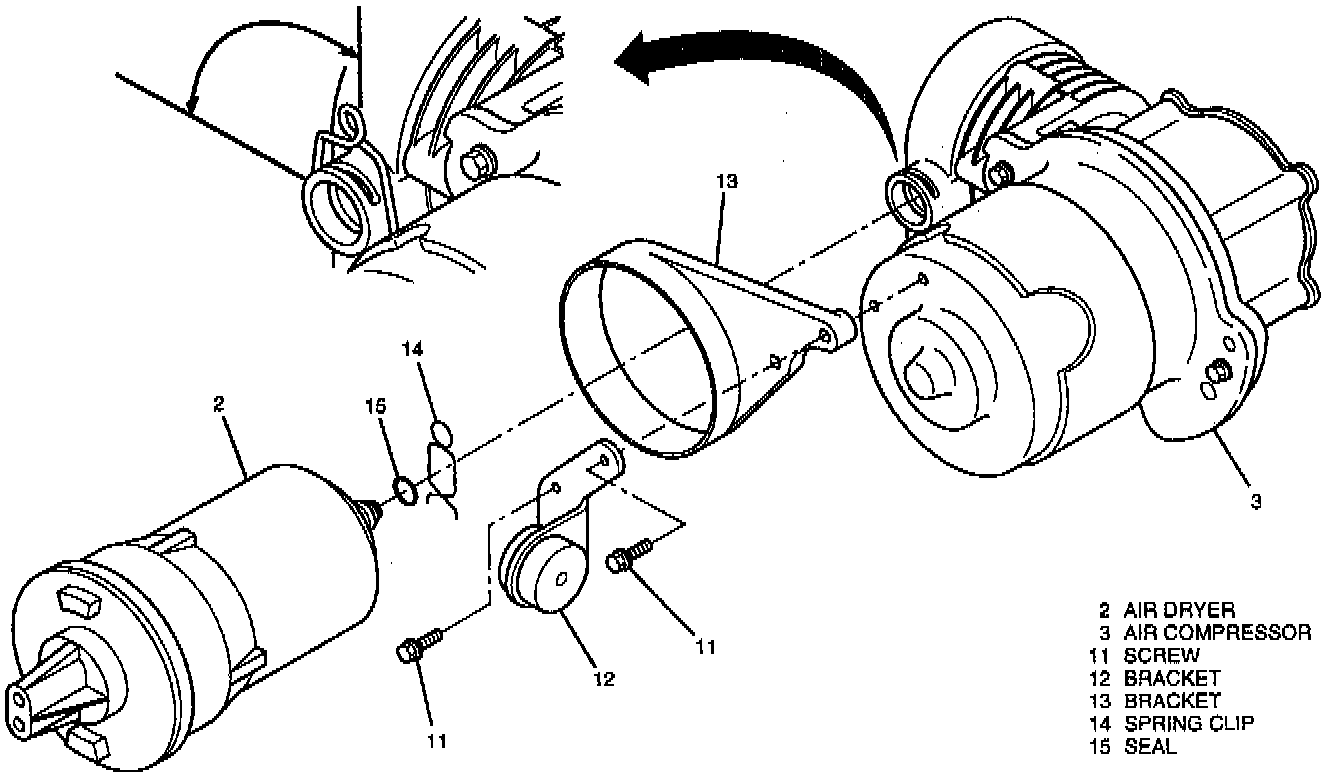

10. Two screws (11) and two brackets (12 and 13) from air compressor (3).

INSTALL OR CONNECT
1. Two brackets (13 and 12) on air compressor (3) with two screws (11).
^ Tighten two screws to 7 Nm (62 inch lbs.).
2. Air dryer on air compressor.
3. Air compressor assembly (M) on bracket (4) with three bolts (10).
^ Tighten three bolts to 2.5 to 3.0 Nm (23 to 26 inch lbs.).
4. Air compressor assembly (M) with bracket (4) on vehicle with three bolts (9).
^ Tighten three bolts to 15 Nm (11 ft. lbs.).
5. Harness connector (K) to air compressor connector (L).
6. Intake air filter and hose to vehicle and air compressor.
7. Air tube (1) to air compressor bracket (4).
8. Air tube (1) to air dryer (2).
9. Exhaust system on hangers.
10. Lower vehicle.

Important: Before driving vehicle, turn ignition on and wait approximately 45 seconds. This will permit the ELC system to execute the ARC, insuring that the air adjustable shock absorbers are filled with, at least, residual pressure.
