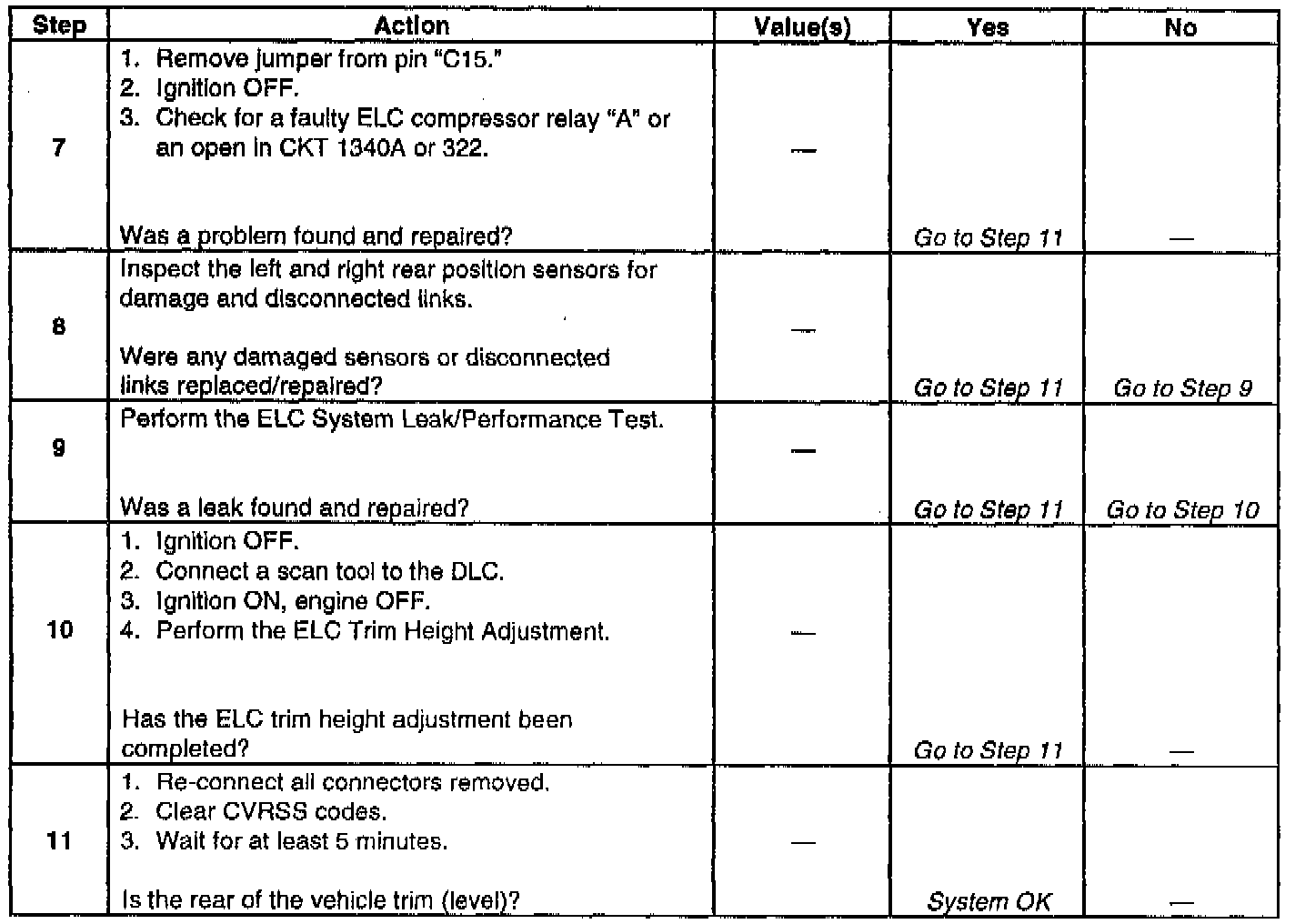

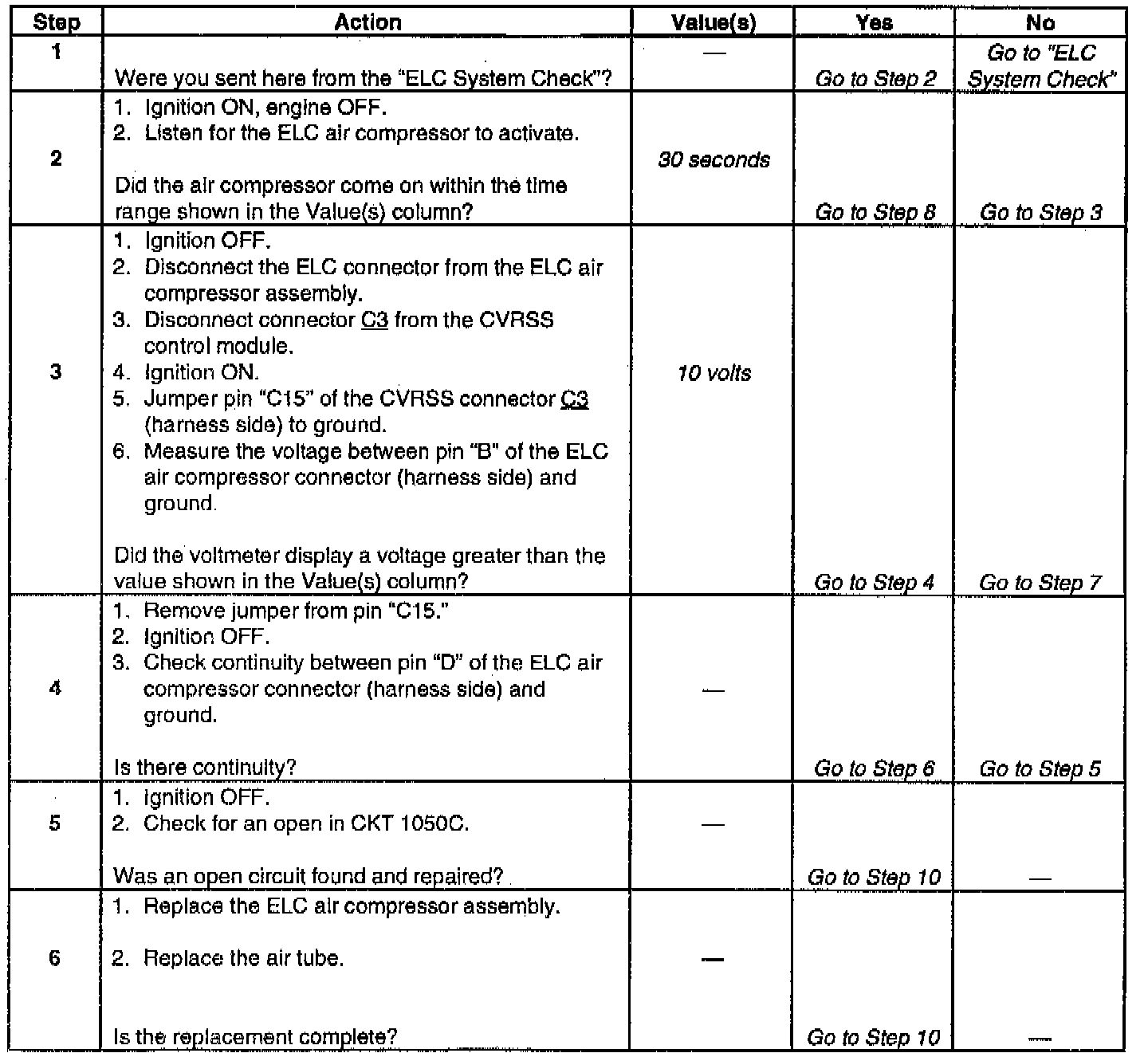

Rear of Vehicle Low










^ Tool Required:
- J 22124-B Pressure Gage
- Or Equivalent


Important: Diagnose Continuously Variable Road Sensing Suspension (CVRSS) codes first.
