Chart 6 Automatic Mode Does Not Operate Properly

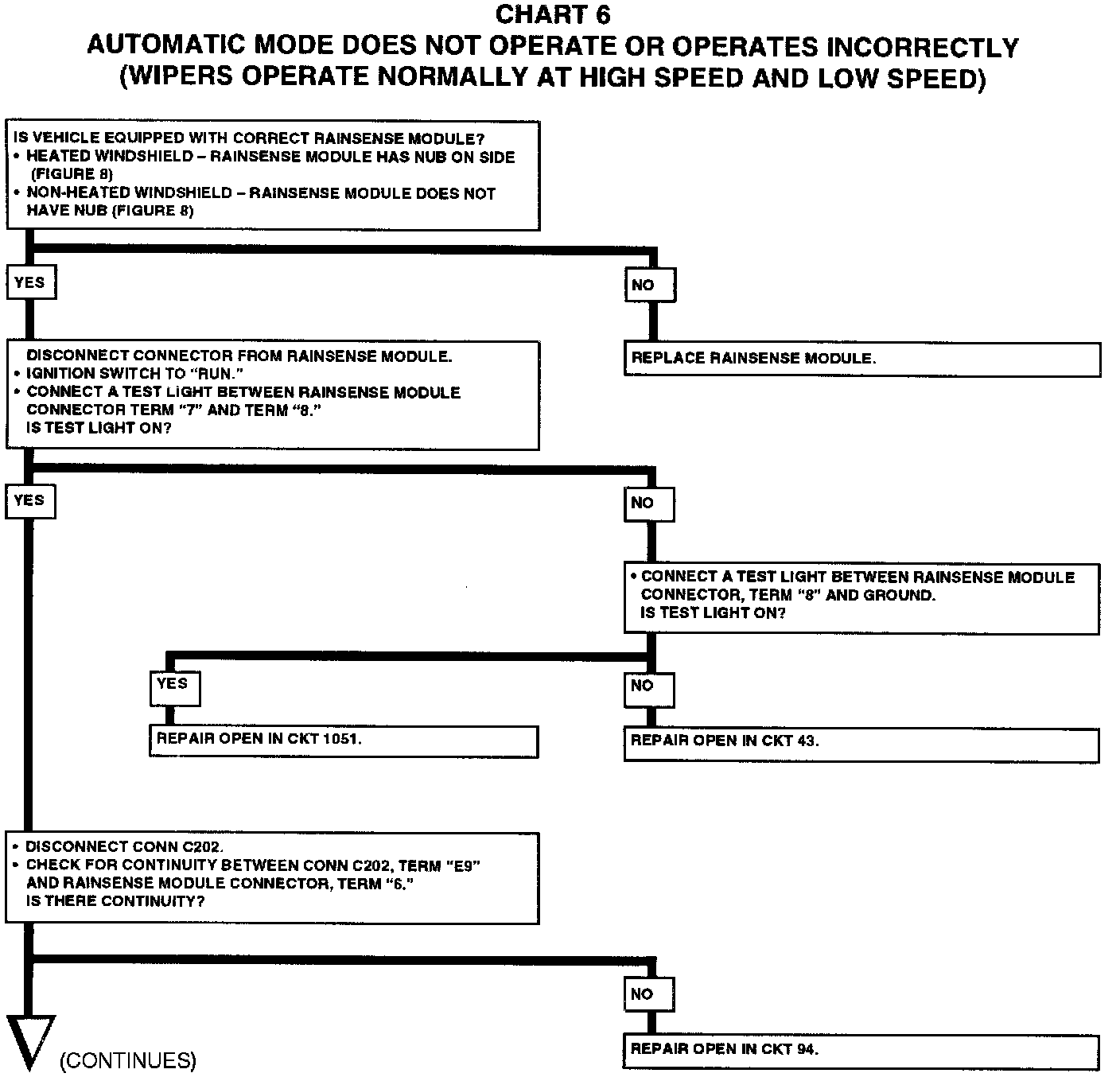

Chart 6 Automatic Mode Does Not Operate Or Operates Incorrectly )Wipers Operate Normally At High Or Low Speed [1 Of 2]):



Rainsense Module:

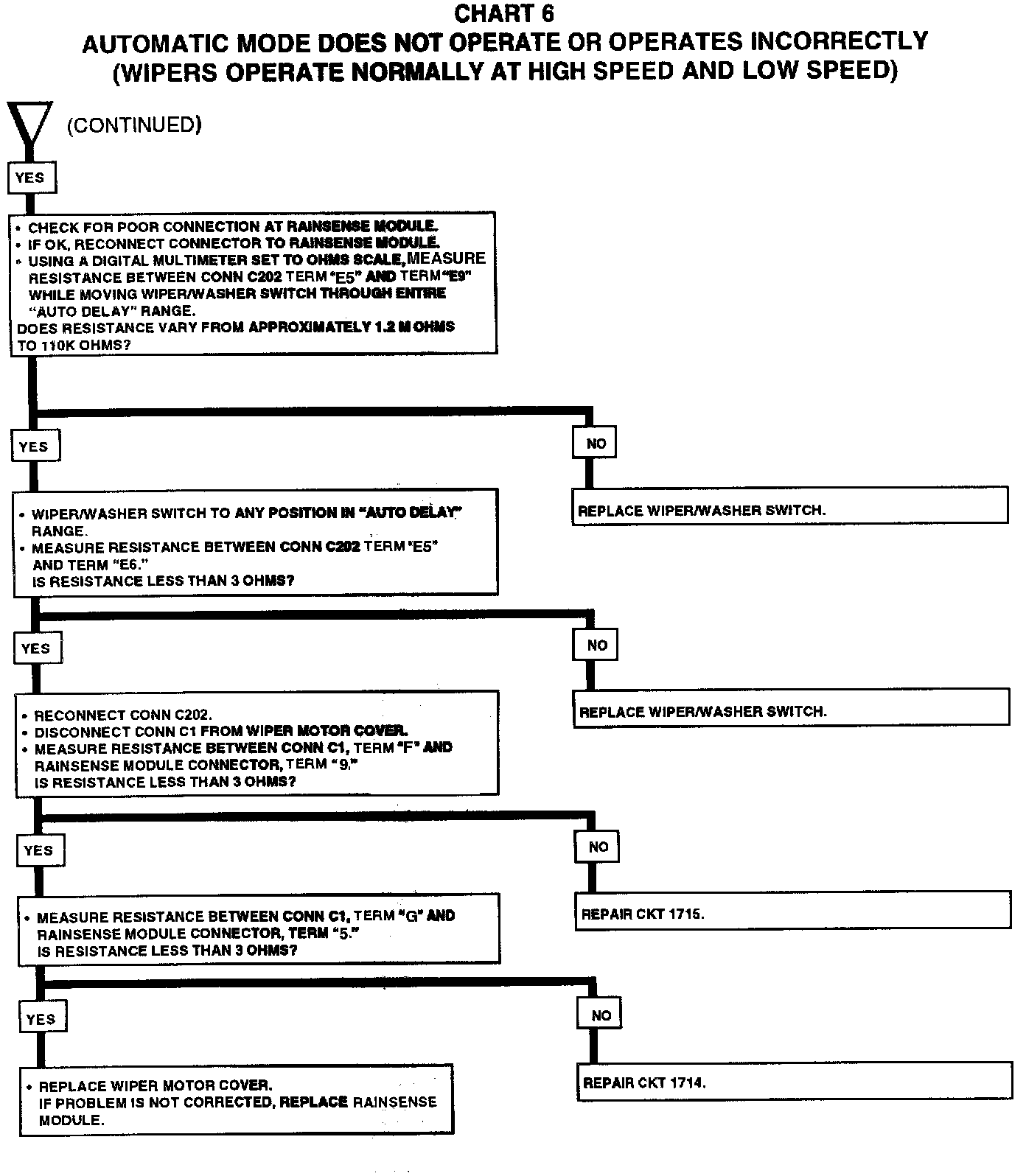

Chart 6 Automatic Mode Does Not Operate Or Operates Incorrectly )Wipers Operate Normally At High Or Low Speed [2 Of 2]):
